首頁進口晶振D3SX48E000002E,臺產鴻星晶振,HCMOS輸出晶振

D3SX48E000002E,臺產鴻星晶振,HCMOS輸出晶振

規格型號：1494541
頻率：48M

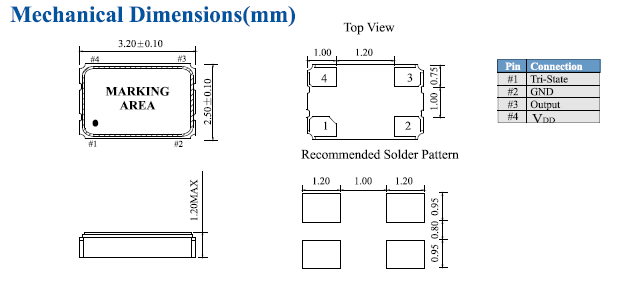

尺寸：3225
PDF

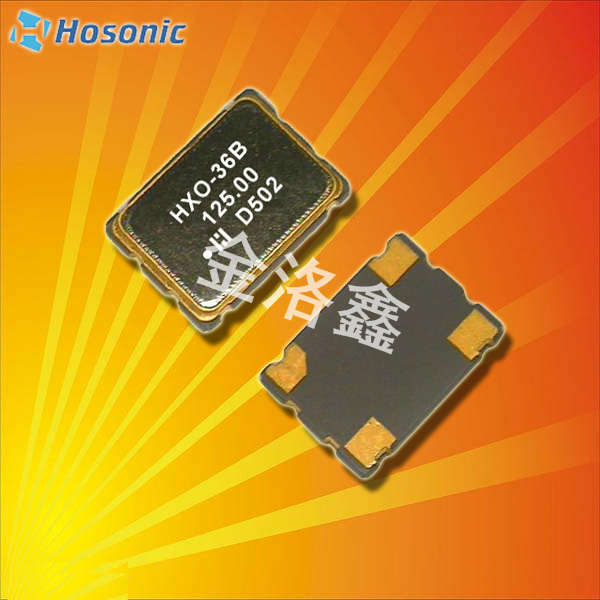

產品描述：D3SX48E000002E是臺產鴻星(HOSONIC)推出的一款高性能HCMOS輸出有源晶振,隸屬于鴻星D3SX系列,采用3225(3.2×2.5×1.2mm)標準貼片封裝,完美適配高密度PCB布局與小型化電子設備設計.

D3SX48E000002E,臺產鴻星晶振,HCMOS輸出晶振

D3SX48E000002E是臺產鴻星(HOSONIC)推出的HCMOS輸出有源晶振,憑借成熟的工藝,穩定的性能與親民的性價比,廣泛應用于各類電子設備.該晶振采用3225(3.2×2.5mm)標準貼片封裝,體積緊湊,便于高密度PCB布局,支持自動化貼片與回流焊工藝,大幅提升生產效率,降低人工成本.作為HCMOS輸出類型晶振,它具備高驅動能力和快速轉換速度,適用于高速數字電路和數據通信等需要快速,穩定時鐘信號的場合,無需額外放大電路即可驅動多個負載.產品依托鴻星嚴格的品控體系,頻率精度高,溫漂小,在-40℃~+85℃寬溫范圍內保持穩定輸出,滿足工業級與消費級設備的嚴苛需求.此外,該晶振功耗低,起振快,抗振動能力強,符合RoHS環保標準,可廣泛應用于智能家居,通信設備,儀器儀表,便攜式電子設備等領域,為各類數字系統提供精準,可靠的時鐘基準,充分展現臺產鴻星晶振的高品質與實用性.

D3SX48E000002E,臺產鴻星晶振,HCMOS輸出晶振

原廠型號 Originalmodel：	D3SX48E000002E	品牌brand：	鴻星
Manufacturer品牌	鴻星	OperatingTemperature溫度	-40℃~+85℃
Series型號	D3SX	Current-Supply(Max)	-
Type類型	XO	PackageHeight高度	1.2MM
Frequency頻率	48M	Termination 腳位	4-pad
輸出方式 Output：	HCMOS輸	PackageType 封裝類型	4-smd
Voltage-Supply電壓	3.3V有源晶振	Packaging 包裝	TapeandReel
FrequencyStability頻率穩定度	±30PPM	安裝方式 Installation：	Surfacemount
Size/Dimension尺寸	3225mm	最小包裝數MPQ：	3000

D3SX48E000002E,臺產鴻星晶振,HCMOS輸出晶振

E3SB25E00003FE	Hosonic鴻星晶振	E3SB	MHz Crystal	25 MHz	±15ppm	±15ppm	18pF
E3SB24E004000E	Hosonic鴻星晶振	E3SB	MHz Crystal	24 MHz	±10ppm	±10ppm	18pF
E3SB32E001500E	Hosonic鴻星晶振	E3SB	MHz Crystal	32 MHz	±10ppm	±10ppm	12pF
E3SB37E0X0004E	Hosonic鴻星晶振	E3SB	MHz Crystal	37.4 MHz	±10ppm	±10ppm	16pF
E3SB25E001803E	Hosonic鴻星晶振	E3SB	MHz Crystal	25 MHz	±20ppm	±20ppm	12pF
E3SB16E0X000WE	Hosonic鴻星晶振	E3SB	MHz Crystal	16.384 MHz	±10ppm	±10ppm	10pF
E3SB27E0X000VE	Hosonic鴻星晶振	E3SB	MHz Crystal	27.12 MHz	±10ppm	±10ppm	10pF
E3SB27E00000DE	Hosonic鴻星晶振	E3SB	MHz Crystal	27 MHz	±10ppm	±10ppm	10pF
E3SB50E00000AE	Hosonic鴻星晶振	E3SB	MHz Crystal	50 MHz	±10ppm	±10ppm	18pF
E3SB26E000011E	Hosonic鴻星晶振	E3SB	MHz Crystal	26 MHz	±10ppm	±10ppm	12pF
E2SB40E000104ECBB8	Hosonic鴻星晶振	E2SB	MHz Crystal	40 MHz	±10ppm	±7ppm	12pF
E2SB38E0X0300E	Hosonic鴻星晶振	E2SB	MHz Crystal	38.4 MHz	±10ppm	±10ppm	8pF
E3SB8E0000003E	Hosonic鴻星晶振	E3SB	MHz Crystal	8 MHz	±30ppm	±30ppm	10pF
E2SB40E000107E	Hosonic鴻星晶振	E2SB	MHz Crystal	40 MHz	-12ppm, +20ppm	±5ppm	12pF
E2SB40E00010AE	Hosonic鴻星晶振	E2SB	MHz Crystal	40 MHz	±10ppm	±7ppm	7pF
E1SB24E00001EE	Hosonic鴻星晶振	E1S	MHz Crystal	24 MHz	±30ppm	±30ppm	18pF
E1SB26E007902E	Hosonic鴻星晶振	E1SB	MHz Crystal	26 MHz	±15ppm	±10ppm	9pF
E3SB24E00000QE	Hosonic鴻星晶振	E3SB	MHz Crystal	24 MHz	±10ppm	±10ppm	10pF
E3SB40E00010JE	Hosonic鴻星晶振	E3SB	MHz Crystal	40 MHz	-12ppm, +20ppm	±5ppm	12pF
E3SB12E000022E	Hosonic鴻星晶振	E3SB	MHz Crystal	12 MHz	±30ppm	±30ppm	18pF
E3SB16E000028E	Hosonic鴻星晶振	E3SB	MHz Crystal	16 MHz	±10ppm	±10ppm	10pF
E3SB40E00090DE	Hosonic鴻星晶振	E3SB	MHz Crystal	40 MHz	±20ppm	±10ppm	12pF
E3SB38E0X0006E	Hosonic鴻星晶振	E3SB	MHz Crystal	38.4 MHz	±10ppm	±10ppm	10pF
E3SB40E00010KECBB8	Hosonic鴻星晶振	E3SB	MHz Crystal	40 MHz	±15ppm	±7ppm	6pF
E3SB39E000006E	Hosonic鴻星晶振	E3SB	MHz Crystal	39 MHz	±15ppm	±8ppm	10pF
E3SB38E0X1806E	Hosonic鴻星晶振	E3SB	MHz Crystal	38.4 MHz	±20ppm	±20ppm	10pF
E3SB48E000801ECBB8	Hosonic鴻星晶振	E3SB	MHz Crystal	48 MHz	±10ppm	±10ppm	12pF
E3SB12E00004EE	Hosonic鴻星晶振	E3SB	MHz Crystal	12 MHz	±35ppm	±8ppm	12pF
E1SB60E003701E	Hosonic鴻星晶振	E1S	MHz Crystal	60 MHz	±20ppm	±10ppm	9pF
E1SB55E0X0002E	Hosonic鴻星晶振	E1SB	MHz Crystal	55.2 MHz	±10ppm	±10ppm	10pF
E2SB27E0X0000E	Hosonic鴻星晶振	E2SB	MHz Crystal	27.12 MHz	±10ppm	±10ppm	8pF
E2SB24E001801E	Hosonic鴻星晶振	E2SB	MHz Crystal	24 MHz	±20ppm	±20ppm	12pF
E2SB40E000108E	Hosonic鴻星晶振	E2SB	MHz Crystal	40 MHz	±15ppm	±7ppm	6pF
ETSB37E0X0014E	Hosonic鴻星晶振	ETSB	MHz Crystal	37.4 MHz	±10ppm	±10ppm	16pF
ETSB38E0X0005E	Hosonic鴻星晶振	ETSB	MHz Crystal	38.4 MHz	±10ppm	±10ppm	10pF
E1SB24E000007E	Hosonic鴻星晶振	E1SB	MHz Crystal	24 MHz	±10ppm	±10ppm	10pF
E1SB25E000009E	Hosonic鴻星晶振	E1S	MHz Crystal	25 MHz	±30ppm	±30ppm	6pF
E1SB24E004000E	Hosonic鴻星晶振	E1S	MHz Crystal	24 MHz	±10ppm	±10ppm	18pF
E1SB38E0X0001E	Hosonic鴻星晶振	E1S	MHz Crystal	38.4 MHz	±10ppm	±10ppm	10pF
E1SB39E000000E	Hosonic鴻星晶振	E1SB	MHz Crystal	39 MHz	±13ppm	±8ppm	10pF
E1SB40E00090AECBB8	Hosonic鴻星晶振	E1S	MHz Crystal	40 MHz	±20ppm	±10ppm	12pF
E1SB48E000506E	Hosonic鴻星晶振	E1S	MHz Crystal	48 MHz	±16ppm	±8ppm	11.1pF
E1SB25E001000E	Hosonic鴻星晶振	E1S	MHz Crystal	25 MHz	±30ppm	±30ppm	18pF
E1SB32E007900E	Hosonic鴻星晶振	E1SB	MHz Crystal	32 MHz	±15ppm	±10ppm	10pF
E1SB32E001502E	Hosonic鴻星晶振	E1SB	MHz Crystal	32 MHz	±20ppm	±10ppm	12pF
E2SB12E000005E	Hosonic鴻星晶振	E2SB	MHz Crystal	12 MHz	±20ppm	±20ppm	12pF
E1SB37E0X0002E	Hosonic鴻星晶振	E1S	MHz Crystal	37.4 MHz	±10ppm	±10ppm	16pF
E1SB32E001501ECBB8	Hosonic鴻星晶振	E1S	MHz Crystal	32 MHz	±10ppm	±10ppm	9pF
E1SB16E000004E	Hosonic鴻星晶振	E1SB	MHz Crystal	16 MHz	±10ppm	±10ppm	8pF
ETSB24E000003E	Hosonic鴻星晶振	ETSB	MHz Crystal	24 MHz	±10ppm	±10ppm	8pF
ETSB48E007500ECBB8	Hosonic鴻星晶振	ETSB	MHz Crystal	48 MHz	±15ppm	±10ppm	10pF
ETSB48E007502E	Hosonic鴻星晶振	ETSB	MHz Crystal	48 MHz	±15ppm	±10ppm	10pF
ETSB32E000003E	Hosonic鴻星晶振	ETSB	MHz Crystal	32 MHz	±10ppm	±10ppm	8pF
ETSB60E003700E	Hosonic鴻星晶振	ETSB	MHz Crystal	60 MHz	±20ppm	±10ppm	9pF
E3SB14E0X0002E	Hosonic鴻星晶振	E3SB	MHz Crystal	14.7456 MHz	±30ppm	±30ppm	12pF
E3SB10E000007E	Hosonic鴻星晶振	E3SB	MHz Crystal	10 MHz	±30ppm	±30ppm	12pF
E3SB25E00000DE	Hosonic鴻星晶振	E3SB	MHz Crystal	25 MHz	±10ppm	±10ppm	10pF
E3FB24E00000KE	Hosonic鴻星晶振	E3FB	MHz Crystal	24 MHz	±30ppm	±30ppm	12pF
E3SB48E00000TE	Hosonic鴻星晶振	E3SB	MHz Crystal	48 MHz	±30ppm	±30ppm	18pF
E3SB50E00002AE	Hosonic鴻星晶振	E3SB	MHz Crystal	50 MHz	±18ppm	±7ppm	9pF
