晶體振蕩器 (XO) - 汽車，我們的汽車兼容晶體振蕩器 (XO) 旨在滿足汽車應用的嚴格要求，并在其部件號中以“Q”區分。它們是在經過嚴格 IATF 16949 標準認證的設施中制造的，并且能夠根據 VDA6.3 進行客戶審核。這些零件均受 PPAP（生產零件批準流程）文檔支持，從而滿足汽車電子行業的所有要求。

此外，所有符合汽車標準的石英晶體振蕩器 (XO) 均已使用 AECQ-200和QAP-81 進行了認證，以涵蓋石英諧振器和XO IC，而不是使用 AEC-Q100（僅針對 IC 定義）。我們計劃在2022年開始為我們新的符合汽車標準的XO產品逐步采用AECQ-104 認證標準，但它不會將以前符合AECQ-200 + QAP-81的產品重新認證為 AEC-Q104（AECQ- 200 + QAP-81 資格標準和 AECQ-0104 資格標準是測試數量和添加 X 射線檢查）。
FKQ系列實現出色的抖動和穩定性,FKD330001,FK4000036,晶體振蕩器,汽車電子晶振

Manufacturer Part Number原廠代碼	Manufacturer品牌	Series型號	Frequency 頻率	Frequency Stability頻率穩定度	Operating Temperature 工作溫度
FNETHE025	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	25MHz	±25ppm	-20°C ~ 70°C
FNETHE025	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	25MHz	±25ppm	-20°C ~ 70°C
FNETHE025	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	25MHz	±25ppm	-20°C ~ 70°C
FNSURV027	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	27MHz	±30ppm	-20°C ~ 70°C
FNSURV027	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	27MHz	±30ppm	-20°C ~ 70°C
FNSURV027	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	27MHz	±30ppm	-20°C ~ 70°C
FNGEPO002	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	2.048MHz	±50ppm	-20°C ~ 70°C
FNGEPO002	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	2.048MHz	±50ppm	-20°C ~ 70°C
FNGEPO002	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	2.048MHz	±50ppm	-20°C ~ 70°C
FKSSD1025	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	25MHz	±25ppm	-10°C ~ 70°C
FKSSD1025	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	25MHz	±25ppm	-10°C ~ 70°C
FKSSD1025	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	25MHz	±25ppm	-10°C ~ 70°C
UJWIFI026	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	26MHz	±20ppm	-30°C ~ 85°C
UJWIFI026	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	26MHz	±20ppm	-30°C ~ 85°C
UJWIFI026	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	26MHz	±20ppm	-30°C ~ 85°C
FNEPON125	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	125MHz	±50ppm	-20°C ~ 70°C
FNEPON125	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	125MHz	±50ppm	-20°C ~ 70°C
FNEPON125	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	125MHz	±50ppm	-20°C ~ 70°C
FK1330001Z	Diodes Incorporated	SaRonix-eCera™ FK	13.3333MHz	±25ppm	-40°C ~ 85°C
FK1330001Z	Diodes Incorporated	SaRonix-eCera™ FK	13.3333MHz	±25ppm	-40°C ~ 85°C
FK1330001Z	Diodes Incorporated	SaRonix-eCera™ FK	13.3333MHz	±25ppm	-40°C ~ 85°C
FJ2400011	Diodes Incorporated	SaRonix-eCera™ FJ	24MHz	±50ppm	-40°C ~ 85°C
FJ2400011	Diodes Incorporated	SaRonix-eCera™ FJ	24MHz	±50ppm	-40°C ~ 85°C
FJ2400011	Diodes Incorporated	SaRonix-eCera™ FJ	24MHz	±50ppm	-40°C ~ 85°C
FJ2400002	Diodes Incorporated	SaRonix-eCera™ FJ	24MHz	±50ppm	-40°C ~ 85°C
FJ2400002	Diodes Incorporated	SaRonix-eCera™ FJ	24MHz	±50ppm	-40°C ~ 85°C
FJ2400002	Diodes Incorporated	SaRonix-eCera™ FJ	24MHz	±50ppm	-40°C ~ 85°C
FN2500149	Diodes Incorporated	SaRonix-eCera™ FN	25MHz	±50ppm	-40°C ~ 85°C
FN2500149	Diodes Incorporated	SaRonix-eCera™ FN	25MHz	±50ppm	-40°C ~ 85°C

FKQ系列實現出色的抖動和穩定性,FKD330001,FK4000036,晶體振蕩器,汽車電子晶振

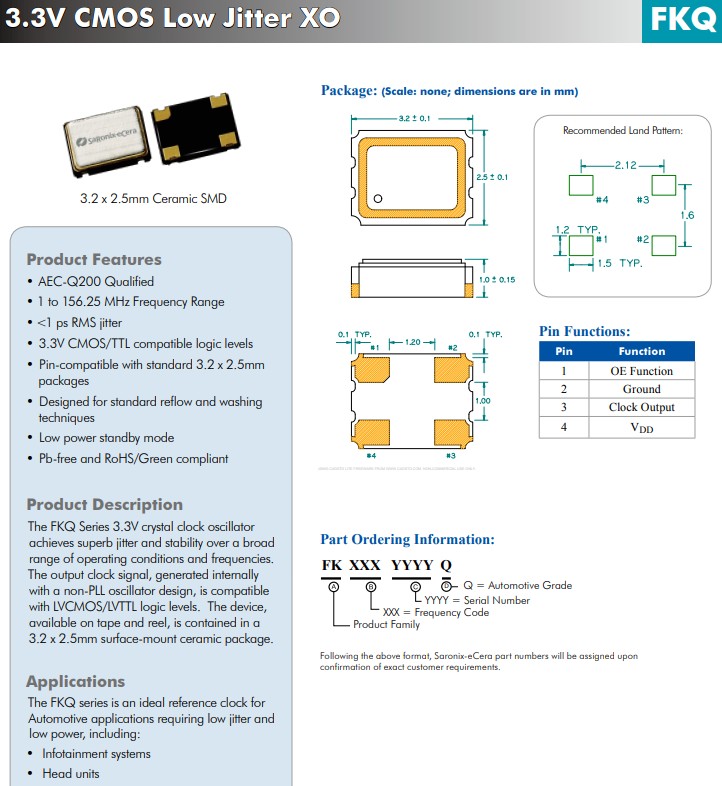

FKQ系列3.3V時鐘晶體可在廣泛的工作條件和頻率范圍內實現出色的抖動和穩定性。FKQ 3.3V、3.2x2.5mm、汽車級CMOS晶體振蕩器，使用非PLL振蕩器設計在內部生成的輸出時鐘信號與 LVCMOS/LVTTL 邏輯電平兼容。該器件采用卷帶包裝，貼片振蕩器，采用3.2 x 2.5mm表面貼裝陶瓷封裝。

產品特點

符合AEC-Q200標準

1 至156.25 MHz 頻率范圍

<1 ps RMS 抖動

3.3V CMOS/TTL 兼容邏輯電平

與標準3.2x2.5mm 封裝引腳兼容

專為標準回流和清洗技術而設計

低功耗待機模式

無鉛且符合 RoHS/Green 標準

應用：FKQ 系列是需要低抖動和低功耗的汽車應用的理想參考時鐘，包括：信息娛樂系統，主機

FN2500149	Diodes Incorporated	SaRonix-eCera™ FN	25MHz	±50ppm	-40°C ~ 85°C
SXGPON155	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	155.52MHz	±50ppm	-40°C ~ 85°C
SXGPON155	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	155.52MHz	±50ppm	-40°C ~ 85°C
SXGPON155	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	155.52MHz	±50ppm	-40°C ~ 85°C
HX2513F0026.000000	Diodes Incorporated	SaRonix-eCera™ HX	26MHz	±50ppm	-40°C ~ 105°C
HX2513F0026.000000	Diodes Incorporated	SaRonix-eCera™ HX	26MHz	±50ppm	-40°C ~ 105°C
HX2513F0026.000000	Diodes Incorporated	SaRonix-eCera™ HX	26MHz	±50ppm	-40°C ~ 105°C
HX3125006Q	Diodes Incorporated	SaRonix-eCera™ HX	25MHz	±30ppm	-40°C ~ 105°C
HX3125006Q	Diodes Incorporated	SaRonix-eCera™ HX	25MHz	±30ppm	-40°C ~ 105°C
HX3125006Q	Diodes Incorporated	SaRonix-eCera™ HX	25MHz	±30ppm	-40°C ~ 105°C
NX3211C0125.000000	Diodes Incorporated	SaRonix-eCera™ NX	125MHz	±50ppm	-20°C ~ 70°C
NX3211C0125.000000	Diodes Incorporated	SaRonix-eCera™ NX	125MHz	±50ppm	-20°C ~ 70°C
NX3211C0125.000000	Diodes Incorporated	SaRonix-eCera™ NX	125MHz	±50ppm	-20°C ~ 70°C
FJ1600002	Diodes Incorporated	SaRonix-eCera™ FJ	16MHz	±50ppm	-20°C ~ 70°C
FJ1600002	Diodes Incorporated	SaRonix-eCera™ FJ	16MHz	±50ppm	-20°C ~ 70°C
FJ1600002	Diodes Incorporated	SaRonix-eCera™ FJ	16MHz	±50ppm	-20°C ~ 70°C
JX7011D0070.656000	Diodes Incorporated	SaRonix-eCera™ JX	70.656MHz	±25ppm	-40°C ~ 85°C
JX7011D0070.656000	Diodes Incorporated	SaRonix-eCera™ JX	70.656MHz	±25ppm	-40°C ~ 85°C
JX7011D0070.656000	Diodes Incorporated	SaRonix-eCera™ JX	70.656MHz	±25ppm	-40°C ~ 85°C
UJ2600007Z	Diodes Incorporated	SaRonix-eCera™ UJ	26MHz	±20ppm	-20°C ~ 70°C
UJ2600007Z	Diodes Incorporated	SaRonix-eCera™ UJ	26MHz	±20ppm	-20°C ~ 70°C
UJ2600007Z	Diodes Incorporated	SaRonix-eCera™ UJ	26MHz	±20ppm	-20°C ~ 70°C
FJ1120001Z	Diodes Incorporated	SaRonix-eCera™ FJ	11.2896MHz	±25ppm	-40°C ~ 85°C
FJ1120001Z	Diodes Incorporated	SaRonix-eCera™ FJ	11.2896MHz	±25ppm	-40°C ~ 85°C
FJ1120001Z	Diodes Incorporated	SaRonix-eCera™ FJ	11.2896MHz	±25ppm	-40°C ~ 85°C
FDC500026	Diodes Incorporated	SaRonix-eCera™ FD	125MHz	±50ppm	-20°C ~ 70°C
FDC500026	Diodes Incorporated	SaRonix-eCera™ FD	125MHz	±50ppm	-20°C ~ 70°C
FDC500026	Diodes Incorporated	SaRonix-eCera™ FD	125MHz	±50ppm	-20°C ~ 70°C
HX7011C0025.000000	Diodes Incorporated	SaRonix-eCera™ HX	25MHz	±25ppm	-40°C ~ 105°C
HX7011C0025.000000	Diodes Incorporated	SaRonix-eCera™ HX	25MHz	±25ppm	-40°C ~ 105°C

FKQ系列實現出色的抖動和穩定性,FKD330001,FK4000036,晶體振蕩器,汽車電子晶振
產品參數：

亞科 XO將軍

產品系列 FKQ

合規性（僅汽車支持 PPAP）汽車

頻率范圍 (MHz) 1 至 162

抖動均方根 (ps) <1

穩定性 (PPM) 20 到 50

包裝尺寸3.2x2.5mmSMD晶振

包裝類型陶瓷縫

輸出邏輯 CMOS

電源電壓 (V) 3.3

墊 4

HX7011C0025.000000	Diodes Incorporated	SaRonix-eCera™ HX	25MHz	±25ppm	-40°C ~ 105°C
NX5011B0125.000000	Diodes Incorporated	SaRonix-eCera™ NX	125MHz	±25ppm	-20°C ~ 70°C
NX5011B0125.000000	Diodes Incorporated	SaRonix-eCera™ NX	125MHz	±25ppm	-20°C ~ 70°C
NX5011B0125.000000	Diodes Incorporated	SaRonix-eCera™ NX	125MHz	±25ppm	-20°C ~ 70°C
FNA000088Z	Diodes Incorporated	SaRonix-eCera™ FN	100MHz	±50ppm	-40°C ~ 85°C
FNA000088Z	Diodes Incorporated	SaRonix-eCera™ FN	100MHz	±50ppm	-40°C ~ 85°C
FNA000088Z	Diodes Incorporated	SaRonix-eCera™ FN	100MHz	±50ppm	-40°C ~ 85°C
FNA000065	Diodes Incorporated	SaRonix-eCera™ FN	100MHz	±25ppm	-20°C ~ 70°C
FNA000065	Diodes Incorporated	SaRonix-eCera™ FN	100MHz	±25ppm	-20°C ~ 70°C
FNA000065	Diodes Incorporated	SaRonix-eCera™ FN	100MHz	±25ppm	-20°C ~ 70°C
NX71C50003	Diodes Incorporated	SaRonix-eCera™ NX	125MHz	±25ppm	-40°C ~ 85°C
NX71C50003	Diodes Incorporated	SaRonix-eCera™ NX	125MHz	±25ppm	-40°C ~ 85°C
NX71C50003	Diodes Incorporated	SaRonix-eCera™ NX	125MHz	±25ppm	-40°C ~ 85°C
FNC500131	Diodes Incorporated	SaRonix-eCera™ FN	125MHz	±50ppm	-40°C ~ 85°C
FNC500131	Diodes Incorporated	SaRonix-eCera™ FN	125MHz	±50ppm	-40°C ~ 85°C
FNC500131	Diodes Incorporated	SaRonix-eCera™ FN	125MHz	±50ppm	-40°C ~ 85°C
NX71C50001	Diodes Incorporated	SaRonix-eCera™ NX	125MHz	±20ppm	-20°C ~ 70°C
NX71C50001	Diodes Incorporated	SaRonix-eCera™ NX	125MHz	±20ppm	-20°C ~ 70°C
NX71C50001	Diodes Incorporated	SaRonix-eCera™ NX	125MHz	±20ppm	-20°C ~ 70°C
FM3900001Z	Diodes Incorporated	SaRonix-eCera™ FM	39.0625MHz	±50ppm	-40°C ~ 85°C
FM3900001Z	Diodes Incorporated	SaRonix-eCera™ FM	39.0625MHz	±50ppm	-40°C ~ 85°C
FM3900001Z	Diodes Incorporated	SaRonix-eCera™ FM	39.0625MHz	±50ppm	-40°C ~ 85°C
FKA000018Z	Diodes Incorporated	SaRonix-eCera™ FK	100MHz	±50ppm	-40°C ~ 85°C
FKA000018Z	Diodes Incorporated	SaRonix-eCera™ FK	100MHz	±50ppm	-40°C ~ 85°C
FKA000018Z	Diodes Incorporated	SaRonix-eCera™ FK	100MHz	±50ppm	-40°C ~ 85°C
HX3124501Q	Diodes Incorporated	SaRonix-eCera™ HX	24.545452MHz	±25ppm	-40°C ~ 105°C
HX3124501Q	Diodes Incorporated	SaRonix-eCera™ HX	24.545452MHz	±25ppm	-40°C ~ 105°C
HX3124501Q	Diodes Incorporated	SaRonix-eCera™ HX	24.545452MHz	±25ppm	-40°C ~ 105°C
HX31330001	Diodes Incorporated	SaRonix-eCera™ HX	33MHz	±50ppm	-40°C ~ 90°C
HX31330001	Diodes Incorporated	SaRonix-eCera™ HX	33MHz	±50ppm	-40°C ~ 90°C
