首頁歐美晶振ASDMB-24.000MHZ-LC-T,Abracon歐美晶振,LVCMOS輸出晶振

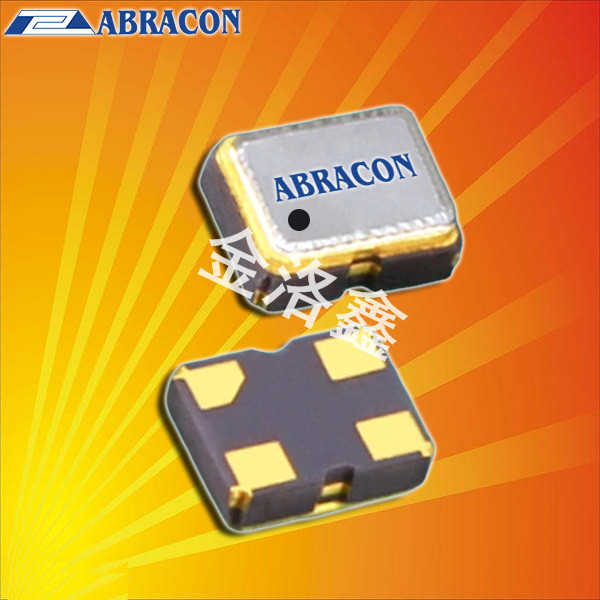

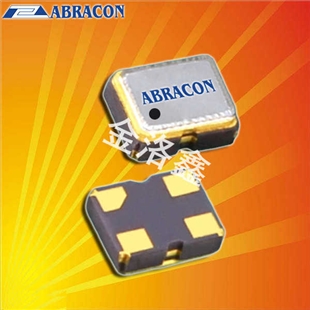

ASDMB-24.000MHZ-LC-T,Abracon歐美晶振,LVCMOS輸出晶振

規格型號：43600684
頻率：24 MHz
尺寸：2520mm
PDF
產品描述：ASDMB-24.000MHZ-LC-T,Abracon歐美晶振,LVCMOS輸出晶振以低電壓互補金屬氧化物半導體(LVCMOS)輸出方式為核心優勢,適配FPGA,CPU,微控制器等數字芯片,廣泛應用于智能手機,平板電腦,工業計算機,智能穿戴設備等產品.

ASDMB-24.000MHZ-LC-T,Abracon歐美晶振,LVCMOS輸出晶振
作為Abracon旗下高性能頻率控制元件,ASDMB-24.000MHZ-LC-T晶振以24.000MHz精準輸出頻率為核心,搭載LVCMOS輸出接口,適配數字電路系統的信號需求.其采用精密石英晶體加工工藝,頻率穩定度可達±50ppm,在-40℃~85℃寬溫環境下能保持穩定性能,同時支持3.3V標準供電,典型工作電流低至8mA,有效降低設備能耗.該晶振適配路由器,物聯網網關,工業控制模塊等場景,LVCMOS輸出的低噪聲特性可減少信號傳輸干擾,為設備的高速數據處理與穩定通信提供可靠時鐘支撐.

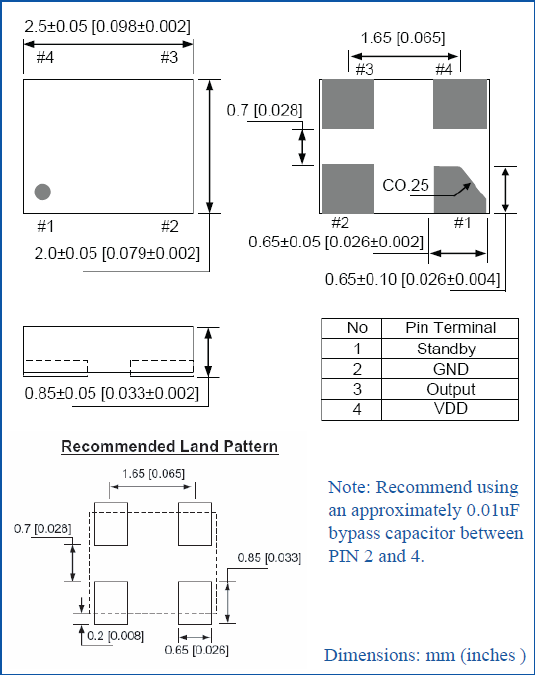

ASDMB-24.000MHZ-LC-T,Abracon歐美晶振,LVCMOS輸出晶振

原廠型號 Originalmodel：	ASDMB-24.000MHZ-LC-T	品牌brand：	Abracon晶振
Manufacturer品牌	Abracon黑色面陶瓷晶振	OperatingTemperature溫度	-40C +85C
Series型號	ASDMB	Current-Supply(Max)	-
Type類型	XO	PackageHeight高度	0.85mm
Frequency頻率	24M	Termination 腳位	4-pad
輸出方式 Output：	LVCMOS	PackageType 封裝類型	4-Smd
Voltage-Supply電壓	1.8-3.3V	Packaging 包裝	TapeandReel
FrequencyStability頻率穩定度	50PP	安裝方式 Installation：	Surfacemount
Size/Dimension尺寸	2520mm	最小包裝數MPQ：	3000

ASDMB-24.000MHZ-LC-T,Abracon歐美晶振,LVCMOS輸出晶振

12.87000	KX-327V	1.25 \| 1.05 \| 0.5 mm	32.768 kHz	12.5 pF	± 20 ppm
12.87001	KX-327V	1.25 \| 1.05 \| 0.5 mm	32.768 kHz	9 pF	± 20 ppm
12.87002	KX-327V	1.25 \| 1.05 \| 0.5 mm	32.768 kHz	7 pF	± 20 ppm
12.87034	KX-327R	2.0 \| 1.2 \| 0.6 mm	32.768 kHz	4 pF	± 20 ppm
12.87080	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	12.5 pF	± 10 ppm
12.87081	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	6 pF	± 20 ppm
12.87083	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	6 pF	± 20 ppm
12.87086	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	6 pF	± 10 ppm
12.87090	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	7 pF	± 10 ppm
12.87095	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	9 pF	± 10 ppm
12.87105	KX-327S	8.2 \| 3.8 \| 2.5 mm	32.768 kHz	6 pF	± 10 ppm
12.87107	KX-327S	8.2 \| 3.8 \| 2.5 mm	32.768 kHz	12.5 pF	± 20 ppm
12.87109	KX-327S	8.2 \| 3.8 \| 2.5 mm	32.768 kHz	12 pF	± 15 ppm
12.87110	KX-327S	8.2 \| 3.8 \| 2.5 mm	32.768 kHz	12.5 pF	± 30 ppm
12.87111	KX-327S	8.2 \| 3.8 \| 2.5 mm	32.768 kHz	12.5 pF	± 30 ppm
12.87112	KX-327S	8.2 \| 3.8 \| 2.5 mm	32.768 kHz	12.5 pF	± 20 ppm
12.87113	KX-327S	8.2 \| 3.8 \| 2.5 mm	32.768 kHz	12.5 pF	± 5.0 ppm
12.87114	KX-327S	8.2 \| 3.8 \| 2.5 mm	32.768 kHz	12.5 pF	± 20 ppm
12.87115	KX-327S	8.2 \| 3.8 \| 2.5 mm	32.768 kHz	12.5 pF	± 10 ppm
12.87116	KX-327S	8.2 \| 3.8 \| 2.5 mm	32.768 kHz	12.5 pF	± 10 ppm
12.87118	KX-327S	8.2 \| 3.8 \| 2.5 mm	32.768 kHz	6 pF	± 20 ppm
12.87119	KX-327S	8.2 \| 3.8 \| 2.5 mm	32.768 kHz	6 pF	± 20 ppm
12.87120	KX-327XS	4.95 \| 1.82 \| 0.96 mm	32.768 kHz	12.5 pF	± 30 ppm
12.87121	KX-327XS	4.95 \| 1.82 \| 0.96 mm	32.768 kHz	12.5 pF	± 30 ppm
12.87123	KX-327XS	4.95 \| 1.82 \| 0.96 mm	32.768 kHz	6 pF	± 30 ppm
12.87126	KX-327XS	4.95 \| 1.82 \| 0.96 mm	32.768 kHz	12.5 pF	± 20 ppm
12.87127	KX-327XS	4.95 \| 1.82 \| 0.96 mm	32.768 kHz	6 pF	± 30 ppm
12.87128	KX-327XS	4.95 \| 1.82 \| 0.96 mm	32.768 kHz	6 pF	± 20 ppm
12.87129	KX-327XS	4.95 \| 1.82 \| 0.96 mm	32.768 kHz	12.5 pF	± 20 ppm
12.87130	KX-327L	7.0 \| 1.5 \| 1.4 mm	32.768 kHz	12.5 pF	± 20 ppm
12.87131	KX-327L	7.0 \| 1.5 \| 1.4 mm	32.768 kHz	12.5 pF	± 20 ppm
12.87132	KX-327L	7.0 \| 1.5 \| 1.4 mm	32.768 kHz	7 pF	± 20 ppm
12.87133	KX-327L	7.0 \| 1.5 \| 1.4 mm	32.768 kHz	12.5 pF	± 10 ppm
12.87134	KX-327L	7.0 \| 1.5 \| 1.4 mm	32.768 kHz	7 pF	± 10 ppm
12.87135	KX-327L	7.0 \| 1.5 \| 1.4 mm	32.768 kHz	7 pF	± 20 ppm
12.87136	KX-327L	7.0 \| 1.5 \| 1.4 mm	32.768 kHz	12.5 pF	± 10 ppm
12.87137	KX-327L	7.0 \| 1.5 \| 1.4 mm	32.768 kHz	9 pF	± 20 ppm
12.87138	KX-327L	7.0 \| 1.5 \| 1.4 mm	32.768 kHz	12.5 pF	± 5.0 ppm
12.87139	KX-327L	7.0 \| 1.5 \| 1.4 mm	32.768 kHz	7 pF	± 10 ppm
12.87143	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	9 pF	± 20 ppm
12.87144	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	7 pF	± 5.0 ppm
12.87145	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	12.5 pF	± 20 ppm
12.87146	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	9 pF	± 10 ppm
12.87147	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	7 pF	± 10 ppm
12.87148	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	7 pF	± 20 ppm
12.87149	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	9 pF	± 20 ppm
12.87150	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	12.5 pF	± 20 ppm
12.87151	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	9 pF	± 30 ppm
12.87152	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	12.5 pF	± 20 ppm
12.87153	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	7 pF	± 20 ppm
12.87155	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	12.5 pF	± 30 ppm
12.87157	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	12.5 pF	± 5.0 ppm
12.87158	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	12.5 pF	± 10 ppm
12.87159	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	12.5 pF	± 20 ppm
12.87160	KX-327R	2.0 \| 1.2 \| 0.6 mm	32.768 kHz	12.5 pF	± 20 ppm
12.87161	KX-327R	2.0 \| 1.2 \| 0.6 mm	32.768 kHz	12.5 pF	± 5.0 ppm
12.87163	KX-327R	2.0 \| 1.2 \| 0.6 mm	32.768 kHz	7 pF	± 20 ppm
12.87164	KX-327R	2.0 \| 1.2 \| 0.6 mm	32.768 kHz	9 pF	± 30 ppm
12.87165	KX-327R	2.0 \| 1.2 \| 0.6 mm	32.768 kHz	9 pF	± 20 ppm
12.87166	KX-327R	2.0 \| 1.2 \| 0.6 mm	32.768 kHz	12.5 pF	± 20 ppm
