首頁歐美晶振12.88711無線藍牙應用晶振,KX-7T型號晶振,Geyer進口晶振

    12.88711無線藍牙應用晶振,KX-7T型號晶振,Geyer進口晶振

  • 規格型號：18496353
  • 頻率：25 MHz
  • 尺寸：3225mm
  • PDF
  • 產品描述：OCETDLJANF-30.000000MMHZ,TAITIEN晶振,3.3V晶體時鐘振蕩器依托數十年的技術積淀,TAITIEN晶振系列涵蓋石英晶體諧振器,有源振蕩器等多品類,覆蓋MHz至GHz級頻率范圍,廣泛服務于消費電子,汽車電子,工業控制,通信等領域.


12.88711無線藍牙應用晶振,KX-7T型號晶振,Geyer進口晶振
聚焦低功耗電子設備需求,3.3V晶體時鐘振蕩器以3.3V電壓供電為核心優勢,適配智能手機,智能穿戴設備,物聯網傳感器,便攜式醫療設備等對功耗敏感的產品.其內置高精度振蕩電路,無需外部匹配電容即可穩定工作,頻率穩定度可達±25ppm,相位噪聲典型值低至-140dBc/Hz@1kHz,能有效減少信號干擾.該振蕩器支持貼片式封裝,體積小巧,可輕松融入高密度PCB板設計,為設備的低功耗與高穩定性平衡提供解決方案.


12.88711無線藍牙應用晶振,KX-7T型號晶振,Geyer進口晶振

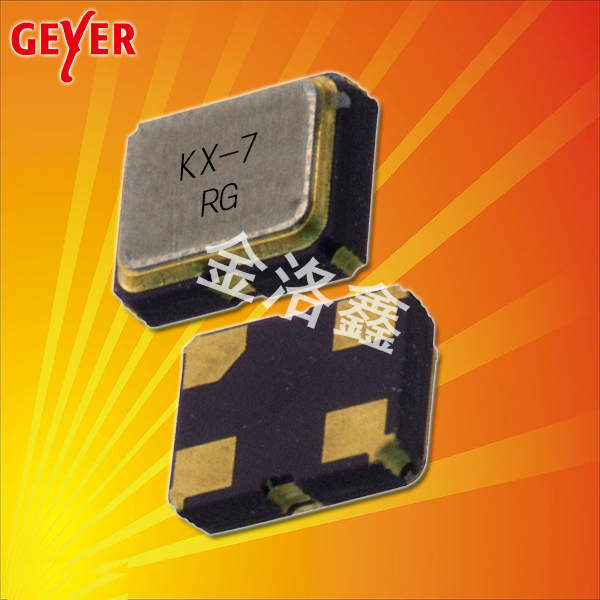

原廠型號 Originalmodel： 12.88711 品牌brand： Geyer

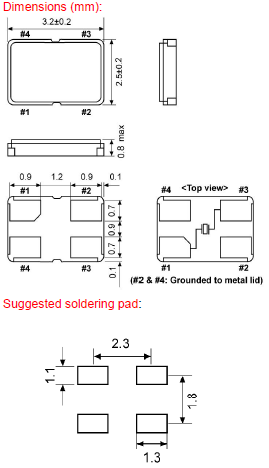

型號名稱 Modelname： KX-7T Size/Dimension尺寸 3225mm石英晶振
Type系列： MHz Crystal 高度PackageHeight： 0.8mm
頻率 frequency： 25M 溫度OperatingTemperature -40°C ~ 85°C
Frequency Stability頻率穩定度  -  腳位Termination： 4Pad
frequencytolerance頻率容差 30PP 封裝類型PackageType： 4-Smd
Loadcapacitance  負載電容 12PF 最小包裝數MPQ： 3000


12.88711無線藍牙應用晶振,KX-7T型號晶振,Geyer進口晶振


12.88711無線藍牙應用晶振,KX-7T型號晶振,Geyer進口晶振
12.87000  KX-327V 1.25 | 1.05 | 0.5 mm 32.768 kHz 12.5 pF ± 20 ppm
12.87001  KX-327V 1.25 | 1.05 | 0.5 mm 32.768 kHz 9 pF ± 20 ppm
12.87002  KX-327V 1.25 | 1.05 | 0.5 mm 32.768 kHz 7 pF ± 20 ppm
12.87034  KX-327R 2.0 | 1.2 | 0.6 mm 32.768 kHz 4 pF ± 20 ppm
12.87080  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 12.5 pF ± 10 ppm
12.87081  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 6 pF ± 20 ppm
12.87083  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 6 pF ± 20 ppm
12.87086  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 6 pF ± 10 ppm
12.87090  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 7 pF ± 10 ppm
12.87095  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 9 pF ± 10 ppm
12.87105  KX-327S 8.2 | 3.8 | 2.5 mm 32.768 kHz 6 pF ± 10 ppm
12.87107  KX-327S 8.2 | 3.8 | 2.5 mm 32.768 kHz 12.5 pF ± 20 ppm
12.87109  KX-327S 8.2 | 3.8 | 2.5 mm 32.768 kHz 12 pF ± 15 ppm
12.87110  KX-327S 8.2 | 3.8 | 2.5 mm 32.768 kHz 12.5 pF ± 30 ppm
12.87111  KX-327S 8.2 | 3.8 | 2.5 mm 32.768 kHz 12.5 pF ± 30 ppm
12.87112  KX-327S 8.2 | 3.8 | 2.5 mm 32.768 kHz 12.5 pF ± 20 ppm
12.87113  KX-327S 8.2 | 3.8 | 2.5 mm 32.768 kHz 12.5 pF ± 5.0 ppm
12.87114  KX-327S 8.2 | 3.8 | 2.5 mm 32.768 kHz 12.5 pF ± 20 ppm
12.87115  KX-327S 8.2 | 3.8 | 2.5 mm 32.768 kHz 12.5 pF ± 10 ppm
12.87116  KX-327S 8.2 | 3.8 | 2.5 mm 32.768 kHz 12.5 pF ± 10 ppm
12.87118  KX-327S 8.2 | 3.8 | 2.5 mm 32.768 kHz 6 pF ± 20 ppm
12.87119  KX-327S 8.2 | 3.8 | 2.5 mm 32.768 kHz 6 pF ± 20 ppm
12.87120  KX-327XS 4.95 | 1.82 | 0.96 mm 32.768 kHz 12.5 pF ± 30 ppm
12.87121  KX-327XS 4.95 | 1.82 | 0.96 mm 32.768 kHz 12.5 pF ± 30 ppm
12.87123  KX-327XS 4.95 | 1.82 | 0.96 mm 32.768 kHz 6 pF ± 30 ppm
12.87126  KX-327XS 4.95 | 1.82 | 0.96 mm 32.768 kHz 12.5 pF ± 20 ppm
12.87127  KX-327XS 4.95 | 1.82 | 0.96 mm 32.768 kHz 6 pF ± 30 ppm
12.87128  KX-327XS 4.95 | 1.82 | 0.96 mm 32.768 kHz 6 pF ± 20 ppm
12.87129  KX-327XS 4.95 | 1.82 | 0.96 mm 32.768 kHz 12.5 pF ± 20 ppm
12.87130  KX-327L 7.0 | 1.5 | 1.4 mm 32.768 kHz 12.5 pF ± 20 ppm
12.87131  KX-327L 7.0 | 1.5 | 1.4 mm 32.768 kHz 12.5 pF ± 20 ppm
12.87132  KX-327L 7.0 | 1.5 | 1.4 mm 32.768 kHz 7 pF ± 20 ppm
12.87133  KX-327L 7.0 | 1.5 | 1.4 mm 32.768 kHz 12.5 pF ± 10 ppm
12.87134  KX-327L 7.0 | 1.5 | 1.4 mm 32.768 kHz 7 pF ± 10 ppm
12.87135  KX-327L 7.0 | 1.5 | 1.4 mm 32.768 kHz 7 pF ± 20 ppm
12.87136  KX-327L 7.0 | 1.5 | 1.4 mm 32.768 kHz 12.5 pF ± 10 ppm
12.87137  KX-327L 7.0 | 1.5 | 1.4 mm 32.768 kHz 9 pF ± 20 ppm
12.87138  KX-327L 7.0 | 1.5 | 1.4 mm 32.768 kHz 12.5 pF ± 5.0 ppm
12.87139  KX-327L 7.0 | 1.5 | 1.4 mm 32.768 kHz 7 pF ± 10 ppm
12.87143  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 9 pF ± 20 ppm
12.87144  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 7 pF ± 5.0 ppm
12.87145  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 12.5 pF ± 20 ppm
12.87146  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 9 pF ± 10 ppm
12.87147  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 7 pF ± 10 ppm
12.87148  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 7 pF ± 20 ppm
12.87149  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 9 pF ± 20 ppm
12.87150  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 12.5 pF ± 20 ppm
12.87151  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 9 pF ± 30 ppm
12.87152  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 12.5 pF ± 20 ppm
12.87153  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 7 pF ± 20 ppm
12.87155  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 12.5 pF ± 30 ppm
12.87157  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 12.5 pF ± 5.0 ppm
12.87158  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 12.5 pF ± 10 ppm
12.87159  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 12.5 pF ± 20 ppm
12.87160  KX-327R 2.0 | 1.2 | 0.6 mm 32.768 kHz 12.5 pF ± 20 ppm
12.87161  KX-327R 2.0 | 1.2 | 0.6 mm 32.768 kHz 12.5 pF ± 5.0 ppm
12.87163  KX-327R 2.0 | 1.2 | 0.6 mm 32.768 kHz 7 pF ± 20 ppm
12.87164  KX-327R 2.0 | 1.2 | 0.6 mm 32.768 kHz 9 pF ± 30 ppm
12.87165  KX-327R 2.0 | 1.2 | 0.6 mm 32.768 kHz 9 pF ± 20 ppm
12.87166  KX-327R 2.0 | 1.2 | 0.6 mm 32.768 kHz 12.5 pF ± 20 ppm
